Highlights of the 2023 MRE include:
- Total Indicated Mineral Resources of 11.21 Moz AuEq (508.3 Mt at 0.69 g/t AuEq), representing an increase of 126% in ounces and a 187% increase in tonnes compared to the 2020 MRE.
- Additional Inferred Mineral Resources of 1.80 Moz AuEq (80.5 Mt at 0.69 g/t AuEq)
- Over 99% of the mineral resources in the Indicated category are classified as amenable to “Open Pit” from zones Z87, J, X22, and Southwest, which will form the basis of the Feasibility Study anticipated for completion in early 2024.
- Significant definition at the Southwest Zone and the new discovery of Zone X22 were major new contributors to the open pit MRE, accounting for approximately 28% of the AuEq ounces in the Indicated category. The breakdown by zone is as follows:
- Z87: 5.04Moz (197.1Mt at 0.80g/t AuEq), accounting for approximately 45% of open pit Indicated mineral resources.
- J Zone: 2.98 Moz AuEq (151.9Mt at 0.61g/t AuEq), contributing 27% to the open pit Indicated mineral resources.
- Southwest Zone: 1.89Moz AuEq (98.0Mt at 0.60 g/t AuEq), accounting for nearly 17% of the open pit mineral resources in the Indicated category. A significant increase compared to the 583,000 oz AuEq (22.6 Mt at 0.80 g/t AuEq) Inferred ounces in the 2020 MRE.
- Zone X22: Discovered in late 2022, and with only 23,256 metres drilled, this zone contributed 1.19Moz AuEq (59.2Mt at 0.62 g/t AuEq) or 11% of total open pit Indicated mineral resources.
Justin Reid, CEO and Director of Troilus commented, “The significant growth of this Mineral Resource Estimate reflects the focused and dedicated efforts of our exploration team over the past three years, with a remarkable 126% increase in ounces and a 187% surge in tonnes compared to our 2020 estimate. With an 11.21 Moz AuEq Indicated resource, we believe our project is firmly positioned among North America’s largest undeveloped gold-copper deposits. The definition of the Southwest Zone and the recently discovered X22 Zone has been especially rewarding, with these zones contributing close to 30% of the increased resource. We are also gratified with the excellent quality of the resource, with most of our ounces appearing in the Indicated category. Furthermore, almost the entirety of these contained ounces are classified as ‘open pit’, which will form a strong foundation for our upcoming Feasibility Study, expected to be completed in early 2024. We continue to advance and de-risk our asset with a clear strategic roadmap toward a production scenario, with the goal of ultimately delivering the most value to our shareholders.”

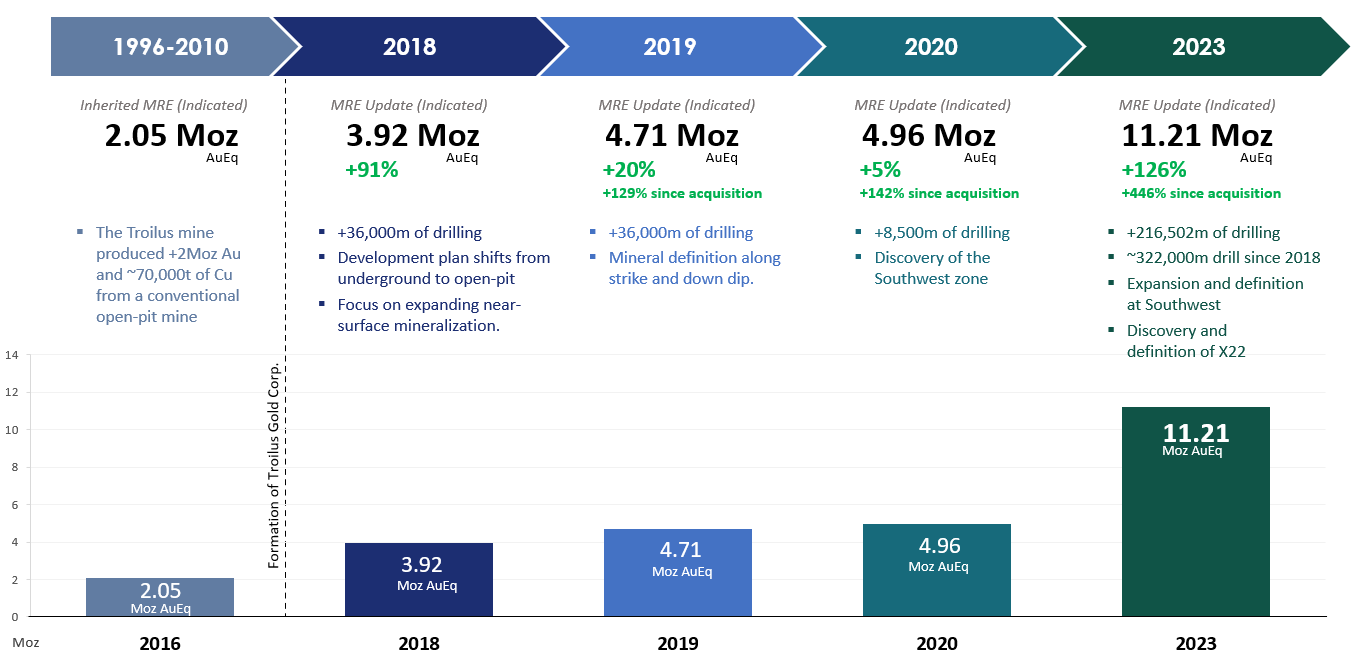

Figure 1. Mineral Resource Growth in the Indicated Category from 2016-2023
(see Table 1 for complete results, incl. grade/tonnes)
https://www.globenewswire.com/NewsRoom/AttachmentNg/d74c4348-16d4-465f-b22b-580dd49c6331
Figure 2. Troilus Project Location Map and Mineral Deposits Locations
https://www.globenewswire.com/NewsRoom/AttachmentNg/ccf71f5d-c20f-4ca3-957b-565aaaf19d52

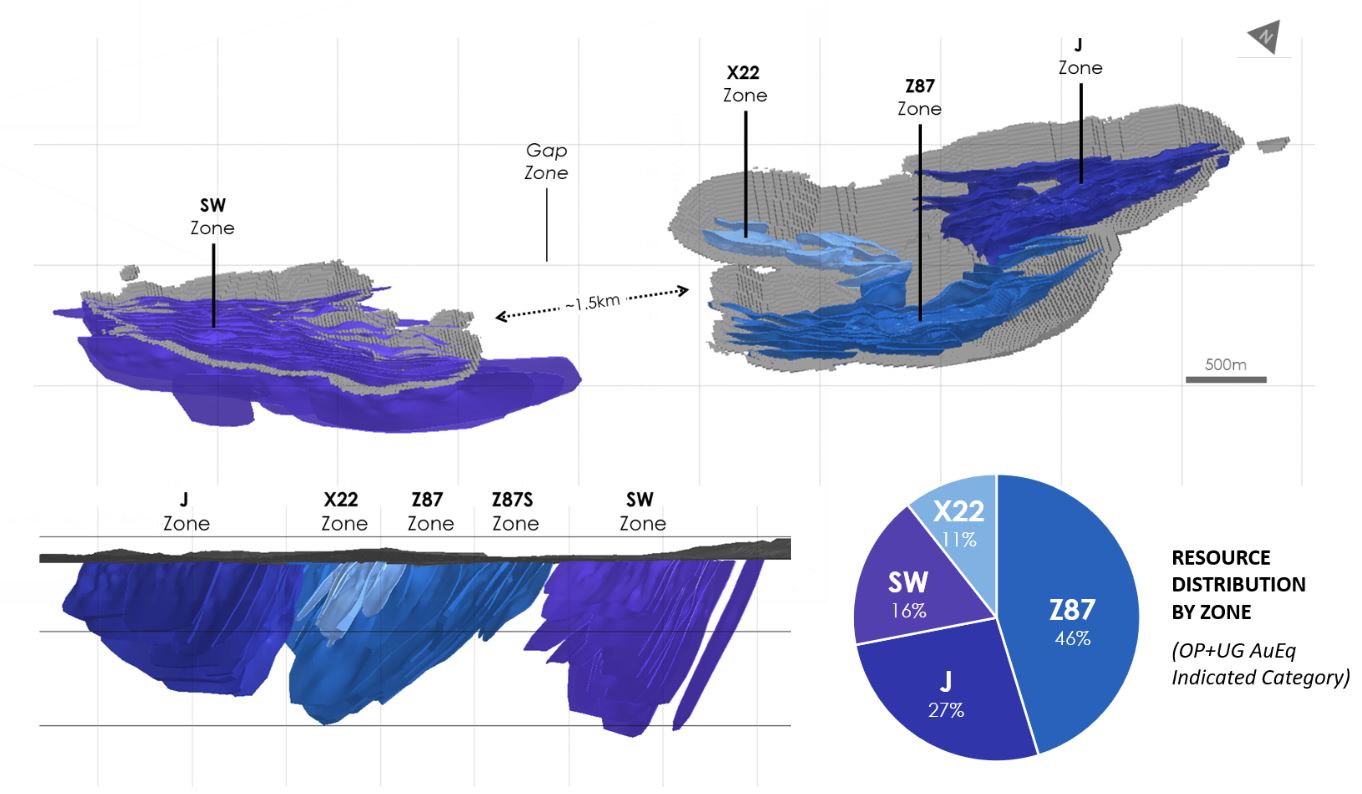

Figure 3. 2023 MRE Wireframes and Pitshells + Resource Distribution by Zone
https://www.globenewswire.com/NewsRoom/AttachmentNg/b9a52c9b-7254-4f05-bb8a-e5f9a311cec9
Troilus Project Mineral Resource Estimate
This MRE reflects the results of 505 drill holes (216,502 metres of drilling) completed since the mineral resource estimate announced in July 2020. Approximately half of the drilling efforts were focused on the expansion and definition of the Southwest and X22 zones, the two most recently discovered ore bodies, which are both drilled to an Indicated level of confidence and will be included in the Feasibility Study’s mining scenario.
The updated MRE for the Troilus Project was prepared by Mr. Paul Daigle, Senior Resource Geologist at AGP Mining Consultants Inc. (“AGP”) in accordance with the National Instrument 43-101 Standards of Disclosure for Mineral Projects (“NI 43-101”) and CIM Definition Standards for Mineral Resources and Mineral Reserves.
Table 1. Total Indicated and Inferred Mineral Resources, All Zones
Category | Tonnes (Mt) | Au (g/t) | Cu (%) | Ag (g/t) | AuEq (g/t) | Gold (Moz) | Copper (Mlb) | Silver (Moz) | AuEq (Moz) |
Indicated | 508.3 | 0.57 | 0.07 | 1.09 | 0.69 | 9.32 | 729.50 | 17.79 | 11.21 |
Inferred | 80.5 | 0.58 | 0.07 | 1.47 | 0.69 | 1.49 | 115.41 | 3.81 | 1.80 |
Z87
The largest of the two formerly mined pits, zone Z87 contributed 5.04Moz AuEq (197.1Mt at 0.80g/t AuEq), or approximately 45% of the open pit Indicated mineral resources.
J Zone
The J Zone is the smaller of the two formerly mined pits, contributing 2.98 Moz AuEq (151.9Mt at 0.61g/t AuEq) or 27% to the open pit Indicated mineral resources.
Southwest Zone
Discovered in late 2019, the Southwest Zone is located ~2.5 kilometres southwest of the formerly mined Z87 pit. 8,500 metres of drill data from this zone was incorporated into the Company’s 2020 mineral resource estimate, which resulted in estimated Inferred mineral resources of 583,000 AuEq ounces (22.6 Mt @ 0.80 g/t AuEq). Since then, approximately 100,000 metres (208 holes) of additional drilling were completed in this zone, resulting in a mineralized footprint with a ~2-kilometre strike length, and a significantly expanded mineral resource of 1.89 Moz AuEq (98.0Mt at 0.60 g/t AuEq) in the Indicated category. The Southwest Zone is a major new contributor to the new updated MRE, accounting for nearly 17% of the total Indicated mineral resource of the project.
Zone X22
Zone X22 is a NE-SW deformation corridor that originates in the western wall of Zone 87 and extends to the southwest into the Gap Zone. The zone was initially discovered in October 2022 as part of an ongoing drill program targeting the extremities of the Z87 2020 pit shell. A total of 23,256 metres (80 drill holes) have been drilled at X22 since its discovery, which expanded the zone’s footprint to over 1 kilometre and contributed over 10% of the total open pit Indicated mineral resources of the project with 1.19Moz AuEq (59.2 Mt at 0.62 g/t AuEq).
The combination of infill drilling at an increased drill density, and the discovery and expansion of two new mineralized zones, has resulted in a 126% increase in Indicated mineral resources compared to the 2020 MRE, and a conversion from Inferred (2020 MRE) to Indicated (2023 MRE) of nearly 100%. The mineral resource estimates for Z87, J Zone and the Southwest Zone contain both open pit and underground resources, while Zone X22 contains solely open pit mineral resources (see Tables 2 and 3).

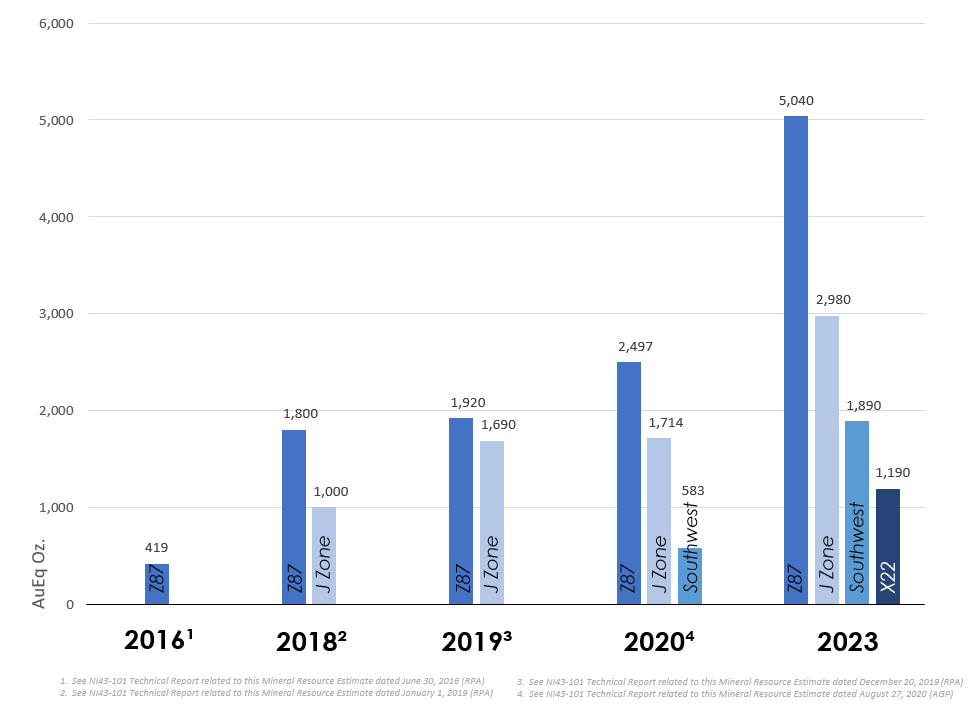

Figure 4. Open Pit Growth by Zone in the Indicated Category, 2016-2023
https://www.globenewswire.com/NewsRoom/AttachmentNg/db2a87a0-80e8-4280-b38f-41a090ea5a89
Table 2 – Total Indicated Mineral Resources, by Zone
Zones | Tonnes (Mt) | Au (g/t) | Cu (%) | Ag (g/t) | AuEq (g/t) | Gold (Moz) | Copper (Mlb) | Silver (Moz) | AuEq (Moz) |
OPEN PIT | |||||||||
TOTAL OP | 506.2 | 0.57 | 0.07 | 1.09 | 0.68 | 9.23 | 725.66 | 17.67 | 11.11 |
Z87 | 197.1 | 0.67 | 0.07 | 1.21 | 0.80 | 4.21 | 320.69 | 7.67 | 5.04 |
J Zone | 151.9 | 0.50 | 0.06 | 0.96 | 0.61 | 2.45 | 215.71 | 4.71 | 2.98 |
X22 | 59.2 | 0.51 | 0.06 | 1.24 | 0.62 | 0.98 | 79.34 | 2.35 | 1.19 |
Southwest | 98.0 | 0.50 | 0.05 | 0.94 | 0.60 | 1.59 | 109.91 | 2.94 | 1.89 |
UNDERGROUND | |||||||||
TOTAL UG | 2.1 | 1.35 | 0.09 | 1.90 | 1.51 | 0.09 | 3.84 | 0.13 | 0.10 |
Z87 | 0.5 | 1.59 | 0.15 | 0.54 | 1.83 | 0.02 | 1.55 | 0.01 | 0.03 |
J Zone | 0.2 | 1.21 | 0.07 | 1.46 | 1.33 | 0.01 | 0.29 | 0.01 | 0.01 |
Southwest | 1.4 | 1.28 | 0.07 | 2.44 | 1.42 | 0.06 | 2.00 | 0.11 | 0.06 |
Total INDICATED (OP + UG) | |||||||||
TOTAL | 508.3 | 0.57 | 0.07 | 1.09 | 0.69 | 9.32 | 729.50 | 17.79 | 11.21 |
Table 3. Total Inferred Mineral Resources, by Zone
Zones | Tonnes (Mt) | Au (g/t) | Cu (%) | Ag (g/t) | AuEq (g/t) | Gold (Moz) | Copper (Mlb) | Silver (Moz) | AuEq (Moz) |
OPEN PIT | |||||||||
TOTAL OP | 76.5 | 0.53 | 0.06 | 1.12 | 0.65 | 1.31 | 108.66 | 2.75 | 1.59 |
Z87 | 37.1 | 0.59 | 0.06 | 1.11 | 0.70 | 0.71 | 50.17 | 1.33 | 0.84 |
J Zone | 24.2 | 0.46 | 0.07 | 0.94 | 0.57 | 0.35 | 35.37 | 0.73 | 0.44 |
X22 | 13.6 | 0.53 | 0.07 | 1.48 | 0.67 | 0.23 | 21.76 | 0.65 | 0.29 |
Southwest | 1.6 | 0.37 | 0.04 | 0.96 | 0.45 | 0.02 | 1.36 | 0.05 | 0.02 |
Underground | |||||||||
TOTAL UG | 4.0 | 1.36 | 0.08 | 8.21 | 1.58 | 0.18 | 6.75 | 1.06 | 0.20 |
Z87 | 1.1 | 1.99 | 0.12 | 0.46 | 2.19 | 0.07 | 2.96 | 0.02 | 0.08 |
J Zone | 1.0 | 1.25 | 0.05 | 0.99 | 1.34 | 0.04 | 1.13 | 0.03 | 0.04 |
Southwest | 1.9 | 1.05 | 0.06 | 16.62 | 1.37 | 0.06 | 2.66 | 1.01 | 0.08 |
Total INFERRED (OP + UG) | |||||||||
TOTAL | 80.5 | 0.58 | 0.07 | 1.47 | 0.69 | 1.49 | 115.41 | 3.81 | 1.80 |
The MRE sensitivity table (see Table 4) shows the potential for higher-grade Mineral Resources at higher gold equivalent cut-offs.
Table 4. Open-Pit MRE Sensitivity Table
Cut-off Grade (g/t AuEq) | Tonnes (Mt) | AuEq (g/t) | Au (g/t) | Cu (%) | Ag (g/t) | Gold (Moz) | Copper (Mlb) | Silver (Moz) | AuEq (Moz) |
Indicated | |||||||||
0.50 | 264.9 | 0.95 | 0.80 | 0.08 | 1.33 | 6.85 | 477.86 | 11.30 | 8.08 |
0.45 | 311.8 | 0.88 | 0.74 | 0.08 | 1.27 | 7.41 | 532.64 | 12.701 | 8.79 |
0.40 | 364.0 | 0.81 | 0.68 | 0.07 | 1.21 | 8.01 | 593.64 | 14.26 | 9.55 |
0.35 | 432.7 | 0.74 | 0.62 | 0.07 | 1.15 | 8.63 | 659.96 | 15.96 | 10.34 |
0.30 | 506.2 | 0.68 | 0.57 | 0.07 | 1.09 | 9.23 | 725.66 | 17.67 | 11.11 |
0.25 | 584.5 | 0.63 | 0.52 | 0.06 | 1.03 | 9.76 | 784.98 | 19.28 | 11.80 |
Inferred | |||||||||
0.50 | 37.8 | 0.91 | 0.77 | 0.08 | 1.38 | 0.94 | 67.03 | 1.68 | 1.11 |
0.45 | 45.2 | 0.84 | 0.71 | 0.08 | 1.31 | 1.03 | 75.76 | 1.91 | 1.22 |
0.40 | 54.0 | 0.77 | 0.65 | 0.07 | 1.25 | 1.12 | 85.85 | 2.167 | 1.34 |
0.35 | 64.3 | 0.71 | 0.59 | 0.07 | 1.19 | 1.22 | 96.97 | 2.45 | 1.47 |
0.30 | 76.5 | 0.65 | 0.53 | 0.06 | 1.12 | 1.31 | 108.66 | 2.75 | 1.59 |
0.25 | 90.9 | 0.59 | 0.48 | 0.06 | 1.05 | 1.41 | 120.41 | 3.06 | 1.72 |
Figure 5 depicts a linear relationship between ore tonnes and grade at variable cutoff grades, outlining a robust resource that has low sensitivity to changing cut-off grades caused by changing market or economic conditions.

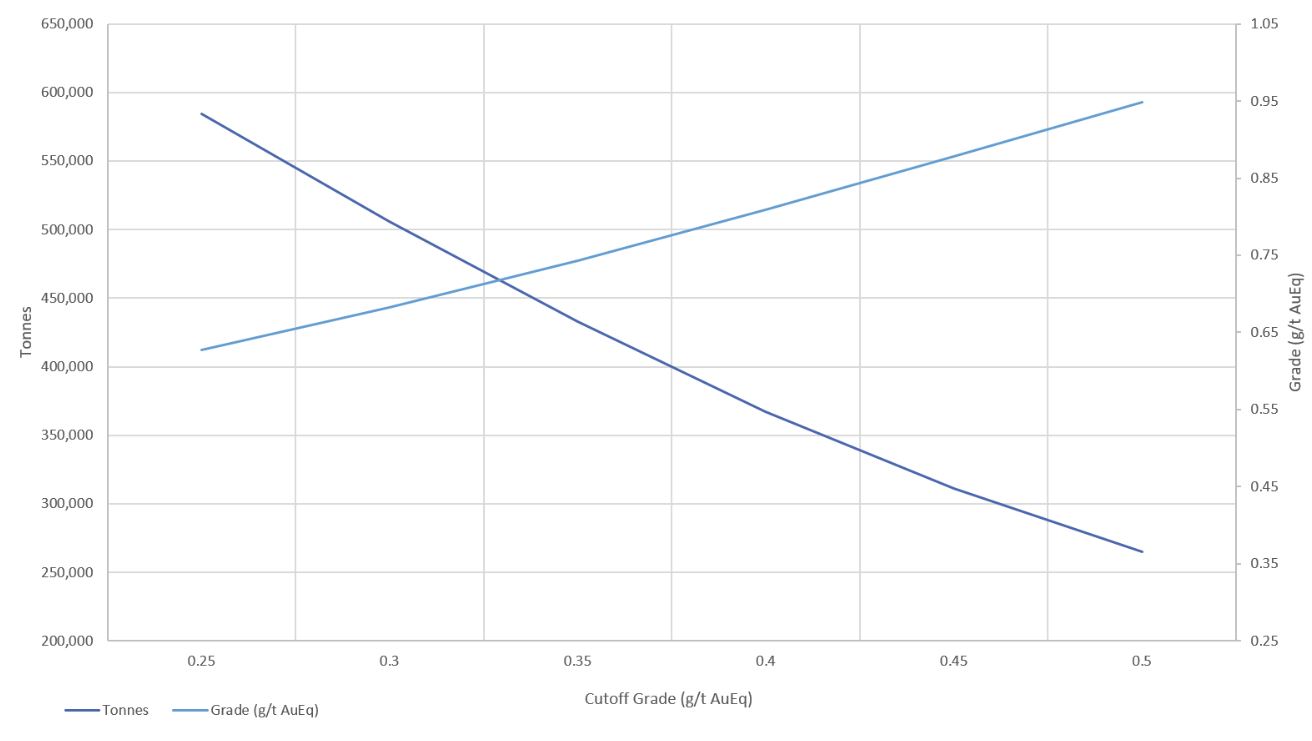

Figure 5. Grade and Tonnage vs. Cut-off (Indicated Mineral Resources)
https://www.globenewswire.com/NewsRoom/AttachmentNg/0aad28aa-d820-4a2a-aef5-1ca4f7f20c68
Figure 6. 2023 Mineral Resource Estimate Pit Constrained Block model
https://www.globenewswire.com/NewsRoom/AttachmentNg/583e3af5-9d91-437b-8816-3c9f762e5e29
Figure 7. 2020 vs. 2023 Mineral Resource Estimate Cross Sections
https://www.globenewswire.com/NewsRoom/AttachmentNg/c35370aa-f929-4439-b24c-fa4add5db52b
Notes Related to the Mineral Resource Estimate
- The independent and qualified person for the mineral resource estimate, as defined by NI 43 101, is Paul Daigle, géo., Senior Resource Geologist at AGP. The effective date of the estimate is October 2, 2023.
- Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.
- Summation errors may occur due to rounding.
- Open pit mineral resources are reported within an optimized constraining shells.
- Open pit cut-off grade is 0.3 g/t AuEq where the metal equivalents were calculated as follows:
- Z87 Zone : AuEq = Au grade + 1.5628 * Cu grade + 0.0128 * Ag grade
- J Zone : AuEq = Au grade + 1.5107 * Cu grade + 0.0119 * Ag grade
- X22 Zone : AuEq = Au grade + 1.5628 * Cu grade + 0.0128* Ag grade
- SW Zone : AuEq = Au grade + 1.6823 * Cu grade + 0.0124 * Ag grade
- Metal prices for the AuEQ formulas are: $US 1,850/ oz Au; $4.25/lb Cu, and $23.00/ oz Ag; with an exchange rate of US$1.00: CAD$1.30
- Metal recoveries for the AuEq formulas are:
- Z87 Zone: 95.5% for Au recovery, 94.7% for Cu recovery and 98.2% for Ag recovery
- J Zone: 93.1% for Au recovery, 89.3% for Cu recovery and 88.9% for Ag recovery
- X22 Zone: 95.5% for Au recovery, 94.7% for Cu recovery and 98.2% for Ag recovery
- SW Zone: 85.7% for Au recovery, 91.5% for Cu recovery and 85.6% for Ag recovery
- The resource constraining shells were generated with:
- Metal Prices: Gold $US 1,850/oz, Copper $US 4.25/lb, Silver $US 23/oz
- Mining Costs:
- J Zone:
- waste – base $Cdn 2.15/t moved (incremental below 5360 $Cdn 0.039/t moved)
- ore – base $Cdn 2.29/t moved (incremental below 5360 $Cdn 0.036/t moved)
- 87 Zone
- Waste – base $Cdn 1.99/t moved (incremental below 5360 $Cdn 0.041/t moved)
- Ore – base $Cdn 2.10/t moved (incremental below 5360 $Cdn 0.029/t moved)
- SW Zone
- Waste – base $Cdn 2.01/t moved (incremental below 5360 $Cdn 0.036/t moved)
- Ore – base $Cdn 2.37/t moved (incremental below 5360 $Cdn 0.028/t moved)
- X22 Zone
- Waste – base $Cdn 2.15/t moved (incremental below 5360 $Cdn 0.039/t moved)
- Ore – base $Cdn 2.29/t moved (incremental below 5360 $Cdn 0.036/t moved)
- J Zone:
- Process and G&A Costs: $Cdn 9.05/t
- Wall slopes: varied between 39 and 49 degrees depending on pit area and slope sector.
- Overall Metal Recoveries:
- J Zone – 91% Au, 88% Ag, 89% Cu
- 87 Zone – 94% Au, 98% Ag, 94% Cu
- SW Zone – 82% Au, 86% Ag, 91% Cu
- X22 Zone – 93% Au, 98% Ag, 93% Cu
(X22 recoveries are estimates based on J Zone. Metallurgical test work is underway for X22)
- Capping of grades varied between 2.30 g/t Au and 14.60 g/t Au; between 0.07% cu and 4.36 %Cu, and between 4.90 g/t Ag and 55.00 g/t Ag; on raw assays.
- The density (excluding overburden and fill) varies between 2.64 g/cm3 and 2.93 g/cm3 depending on lithology for each zone.
- Underground cut-off grade is 0.9 g/t AuEq for Z87, J and SW
The complete technical report associated with the updated mineral resource estimate (the “Technical Report”) will be available on SEDAR+ at www.sedarplus.ca under the Company’s issuer profile, as well as the Company’s website at www.troilusgold.com within 45 calendar days.
